Guangzhou Nanya Industrial Packaging Egg Tray Machine / Pulp Molding Equipment / Egg Tray Production Line with PLC Control
Product Information
It has 2 models, semi automatic and fully automatic type paper egg tray machine.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.

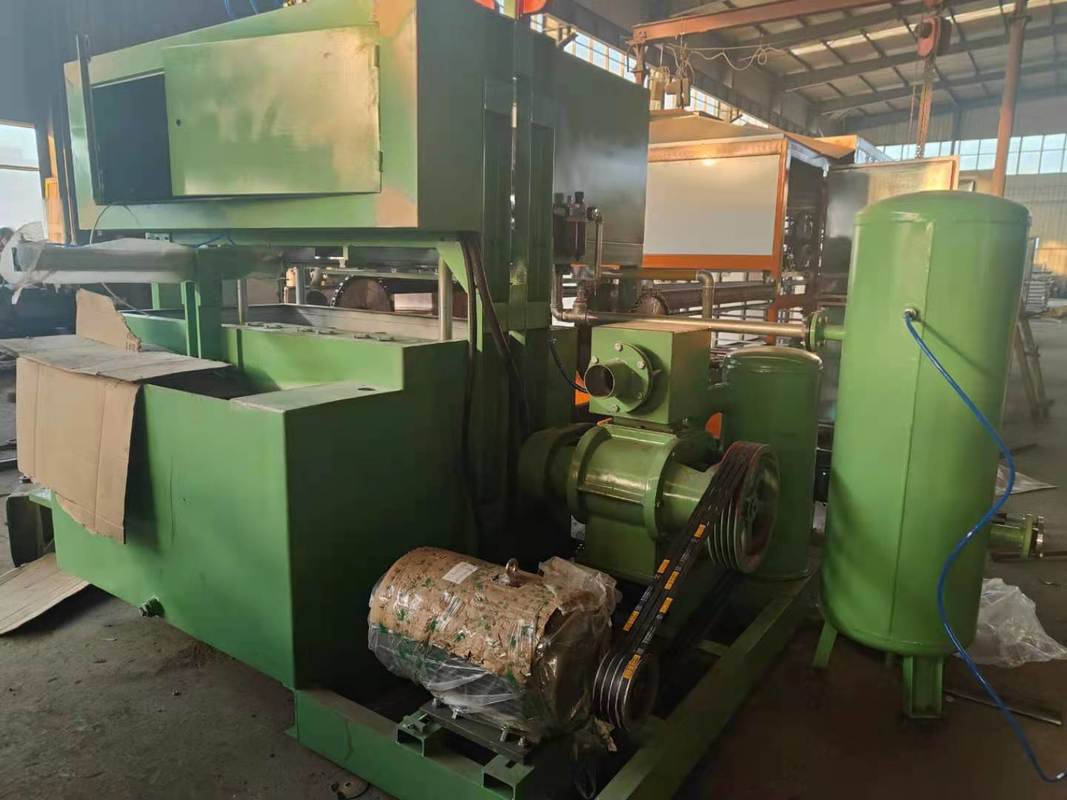

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

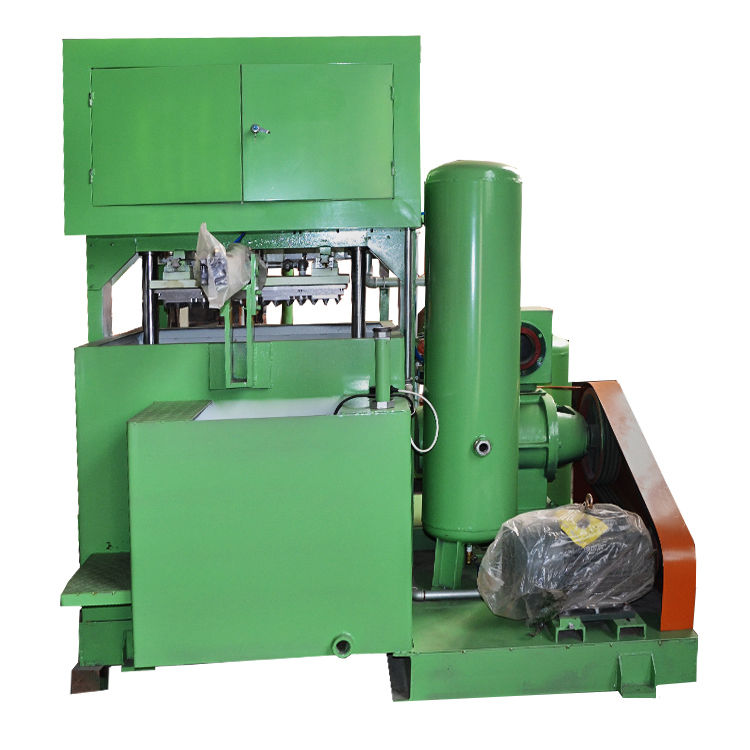

3*4 molds paper egg tray machine 2000pcs/h capacity

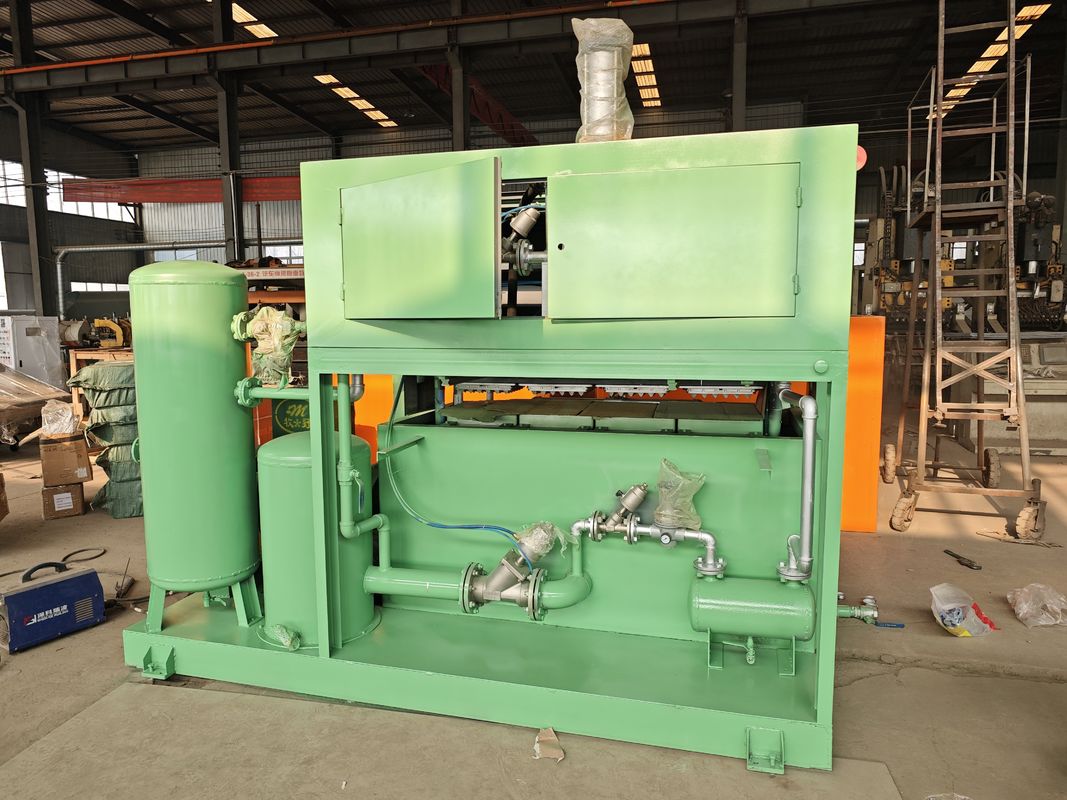

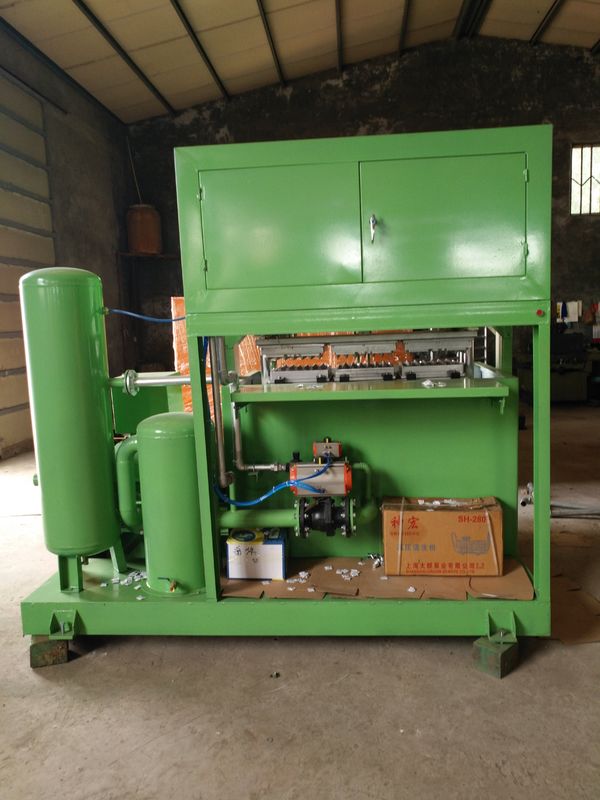

3 molds paper egg tray machine 1000pcs/h capacity forming part

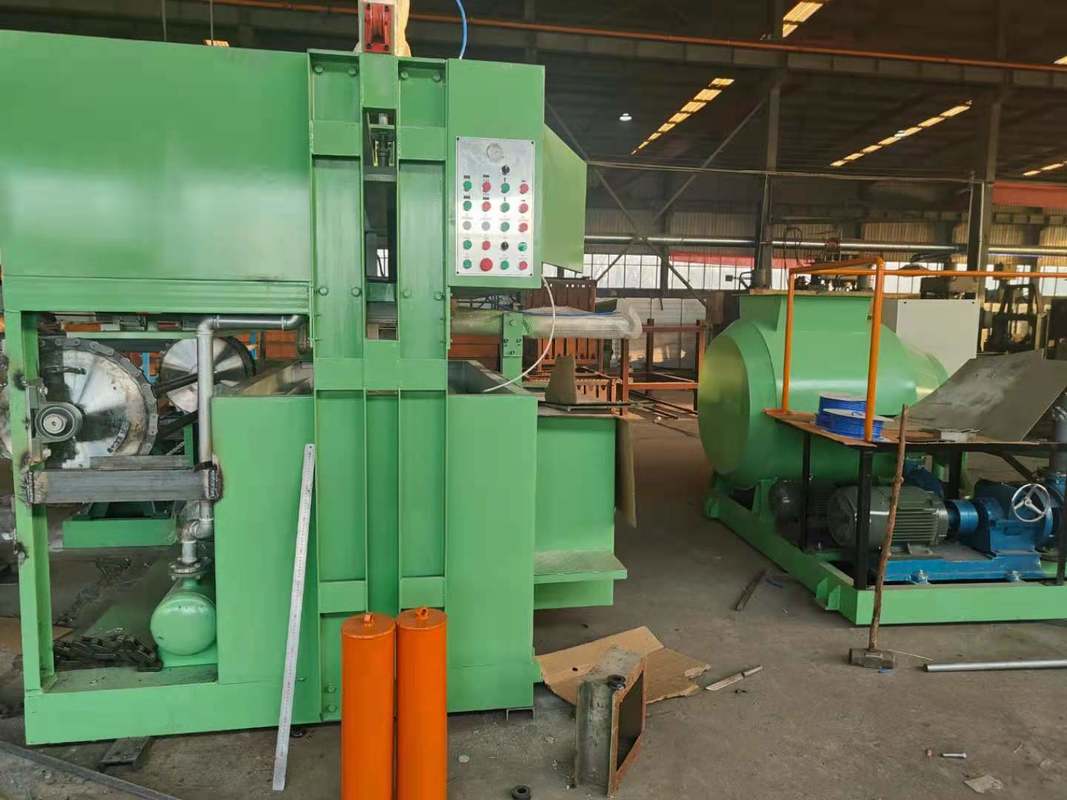

5*8 molds egg tray machine 5000pcs/h capacity egg tray production line

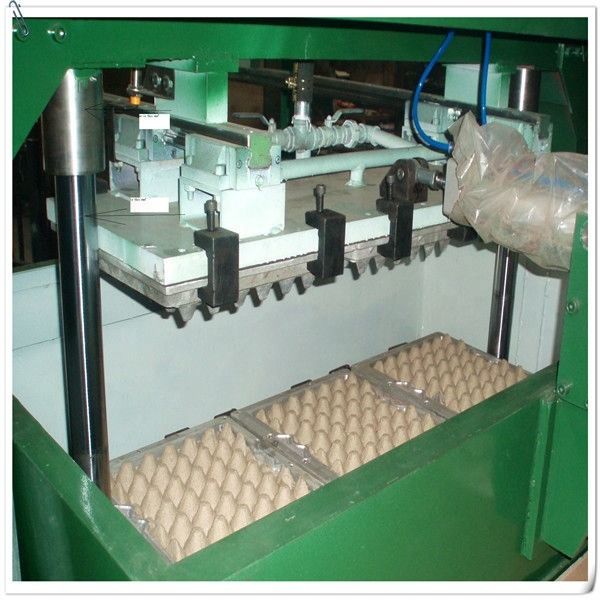

transferring molds of paper egg tray machine 5000pcs/h capacity
3. Drying System
including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(This part is not necessary for small capacity demand machine below 1500pcs/h.)
Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
4 and 6 layers metallic dryer oven for paper egg tray machine / egg tray production line
Other Various capacity machine we can make
|
Egg Tray Mold Quantity
|
1pcs
|
2pcs
|
3pcs
|
4pcs
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Egg tray Capacity
|
350pcs/hour
|
700pcs/hour
|
1000pcs/hour
|
1300pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
70g-75g
|
70g-75g
|
70g-75g
|
|
Waste paper consumption
|
0.025ton / hour
|
0.06ton / hour
|
0.1ton / hour
|
0.13ton / hour
|
|
Water Consumption
|
0.05ton / hour
|
0.1ton/hour
|
0.15ton / hour
|
0.2ton / hour
|
|
Natural Gas Consumption of Dryer
|
12cbm/h
|
25cbm/h
|
35cbm/h
|
50cbm/h
|
|
Worker requirement
|
2-3workers
|
3-4workers
|
4-6workers
|
4-6workers
|
|
Power Requirement
|
Without dryer
|
20KW
|
30KW
|
40KW
|
45KW
|
|
With dryer
|
30KW
|
45KW
|
60KW
|
65KW
|
|
Area of workshop
|
Without dryer
|
More than100M²
|
More than 100 M²
|
More than 120 M²
|
More than 150 M²
|
|
With dryer
|
More than200 M²
|
More than 240 M²
|
More than300M²
|
More than 320 M²
|
|
Container Requirement
|
Without dryer
|
20ft*1
|
20ft*1
|
40ft*1
|
40ft*1
|
|
With dryer
|
40ft*1+20ft*1
|
40ft*2+20ft*1
|
40ft*2+20ft*1
|
40ft*3
|
|
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3.The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4.Paper Pulp Molding Machine are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5.Welcome to contact us anytime, our professional team will provide more effective help and supports for you.
|
|
1300-1500pcs/h capacity 4 molds egg tray machine technical data
|
Technical Parameters
|
|
Egg Tray mould quantity
|
4pcs
|
Machine volume
|
|
Raw material
|
Waste paper
|
About20ft*1
|
|
Output for egg tray
|
1300-1500pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
The volume of waste paper consumed
|
110kg / hour
|
|
The volume of water consumed
|
0.3ton / hour
|
|
Machine Weight
|
4 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
|
Installed power
|
41kw
|
|
Motor working efficiency
|
70%
|
|
Dimensions required to install the machine
|
More than L10m*W5m*H3m
|
|
Remarks:
1.Usually, debugging work will be done before shipment.
2. We will offer online installation support for buyers.Either by video or by phone.
3. Buyer needs to build underground type 1 water and 2 pulp pools with dimensions of 1.5mL*1.5mW*1.5m(deep)
|
Payment Terms
|
Delivery Time: 40 working days after getting payment
Payment Terms: 40% T/T prepayment in advance.
60% before delivery by T/T.
|
|
Warranty time
|
1year after the Egg tray machine received.
|
|
Terms of delivery
|
EXW Jinan, China
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
