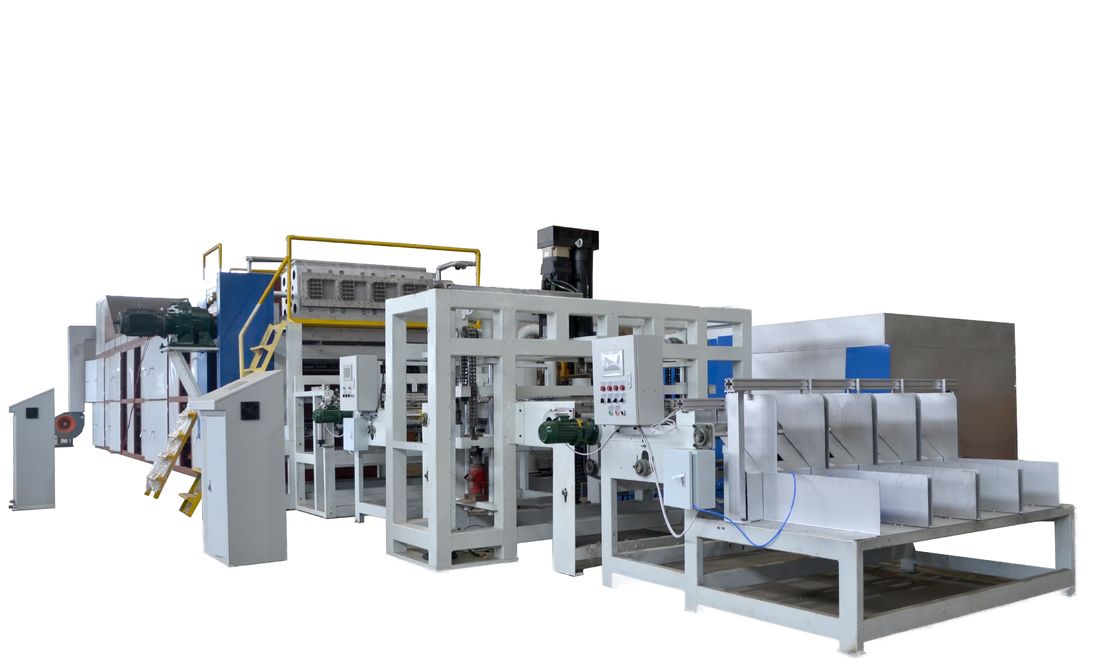

3000pcs/h 4+4 Molds Automatic Egg Tray Machine Production Line Using Recycled Paper Pulp to Create Various Types of Egg Trays and Cartons PLC Controlled

3000pcs/h 4+4 Molds Automatic Egg Tray Machine Production Line Using Recycled Paper Pulp to Create Various Types of Egg Trays and Cartons PLC Controlled

This paper egg tray machine production line uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays.

It is Rotary Type Egg Tray Making Machine.

It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

vibration screen, mixer; pulp pump;water pump,control cabinet for pulping system,etc

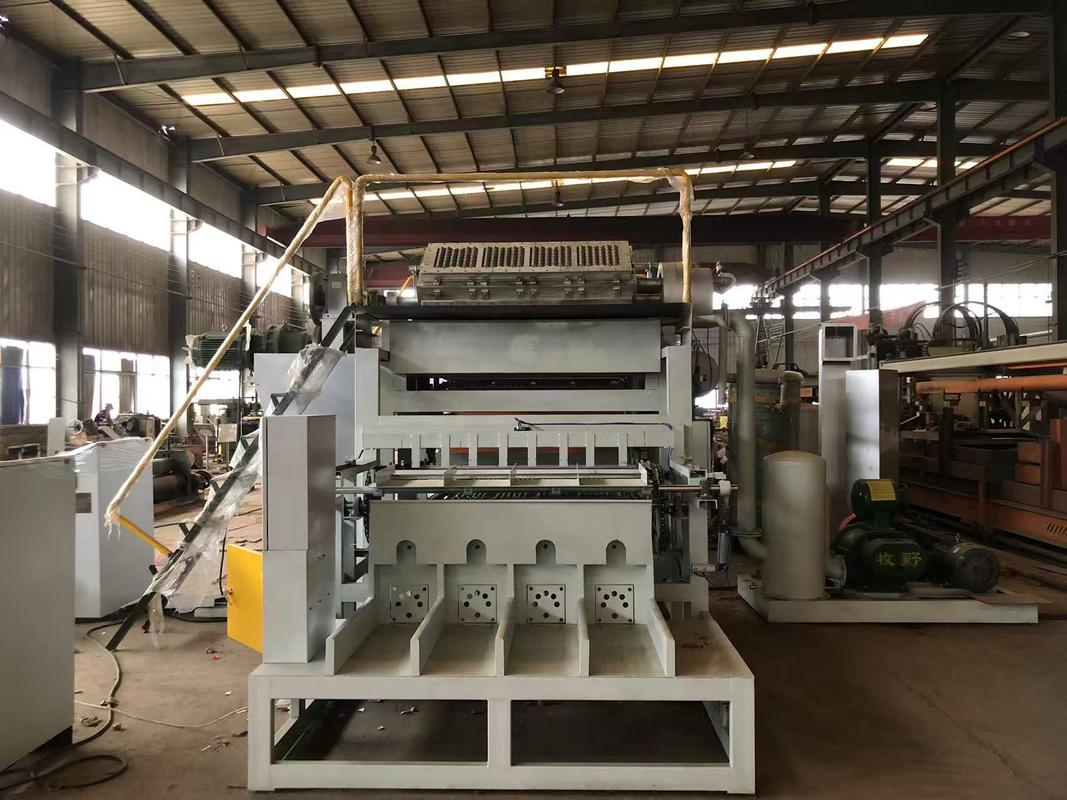

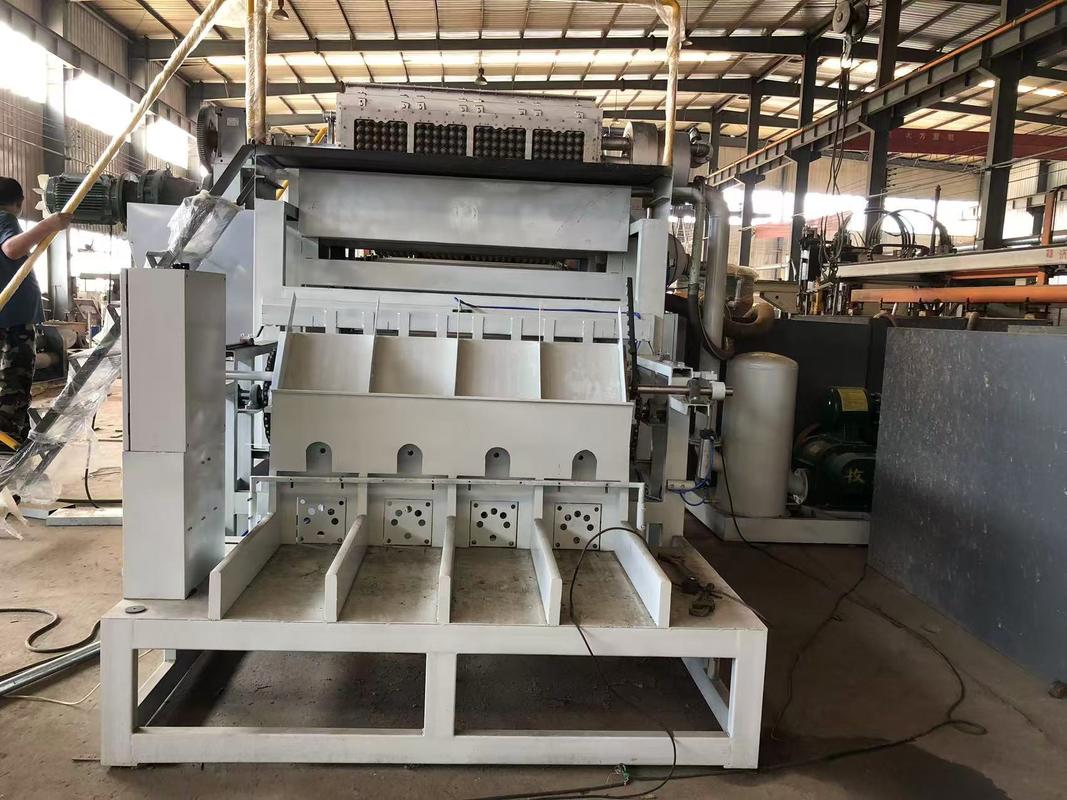

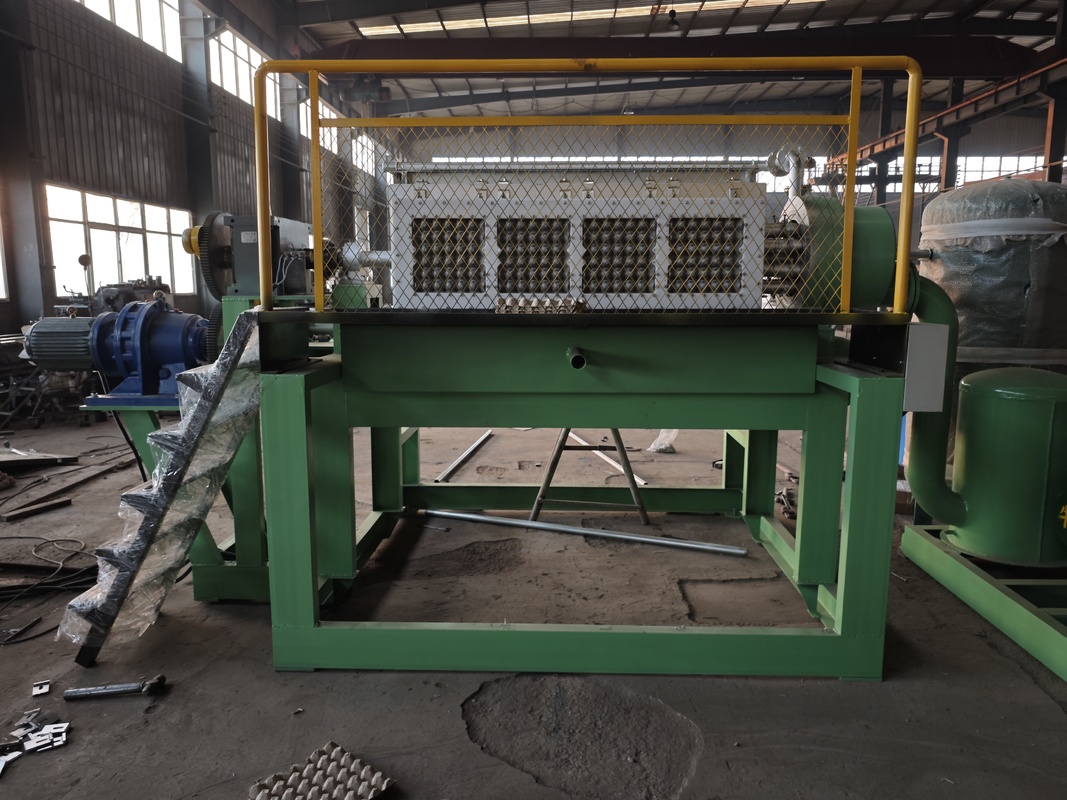

2. Forming system

Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.

Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp...

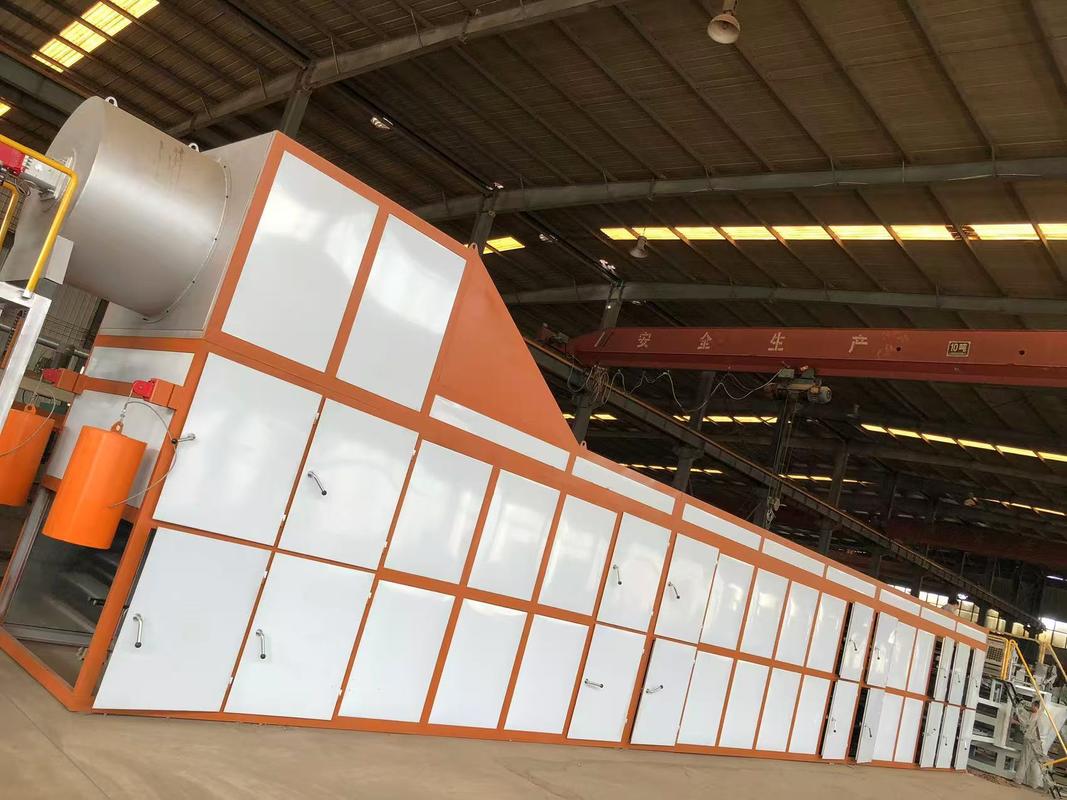

3. Drying system

Single layer conveying chain;heated by section;multi burners;

Six layers drying line, energy saving and saving place

The temperature of each section can be adjusted independently;burners with French or Italian brand

The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

4. Stacking system

The finished products will be counted and stacked automatically after drying.
